Avionic Test Lead Connector & Jumper Lead Kit

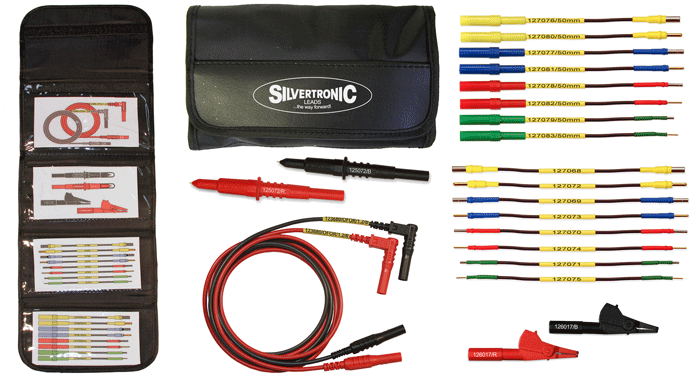

Avionic Test Lead Connector & Jumper Lead Kit Part No: 905315 (NSN 6625-01-618-9787)
Features: 126017 Red and Black
CE/UL/CSA Compliant
Accepts all standard 4mm plugs
Ideal for connecting to small conductors and test points
Jaw opening 7mm (.275”) Max
Rated IEC 1010 300V CAT II 10 Amps

123680/OF-OR Red and Black
CE/UL/CSA Compliant
1.2 Double Insulated Silicone Cable, 250+ copper stranding for high flexibility
Silicone Insulation protects from excessive heat and cold
Inner Silicone skin is a contrasting colour which acts as a wear/damage indicator
Rated IEC 1010 1000V CAT III/600V CAT IV 20 Amps

Connector to Connector Leads
127068 Aero Lead Pin Size 12 - Female to Female Yellow
127072 Aero Lead Pin Size 12 - Male to Male Yellow
127069 Aero Lead Pin Size 16 - Female to Female Blue
127073 Aero Lead Pin Size 16 - Male to Male Blue
127070 Aero Lead Pin Size 20 - Female to Female Red
127074 Aero Lead Pin Size 20 - Male to Male Red
127071 Aero Lead Pin Size 22 - Female to Female Green
127075 Aero Lead Pin Size 22 - Male to Male Green

4mm Socket to Connector Leads
127076/50mm Aero Lead Pin Size 12 - 4mm Socket to Female Yellow
127080/50mm Aero Lead Pin Size 12 - 4mm Socket to Male Yellow
127077/50mm Aero Lead Pin Size 16 - 4mm Socket to Female Blue
127081/50mm Aero Lead Pin Size 16 - 4mm Socket to Male Blue
127078/50mm Aero Lead Pin Size 20 - 4mm Socket to Female Red
127082/50mm Aero Lead Pin Size 20 - 4mm Socket to Male Red
127079/50mm Aero Lead Pin Size 22 - 4mm Socket to Female Green
127083/50mm Aero Lead Pin Size 22 - 4mm Socket to Male Green

125072 Red and Black
CE/UL/CSA Compliant
Accepts all standard 4mm plugs
Sharp Stainless Steel Spike
Rated IEC 1010 1000V CAT III/600V CAT IV 20 Amps

119519
4 Pocket Silvertronic Storage Pouch
Incorporating pictorial Tool Control Facility for instant visual inspection

All components are NSN listed individually and can be configured as desired.
