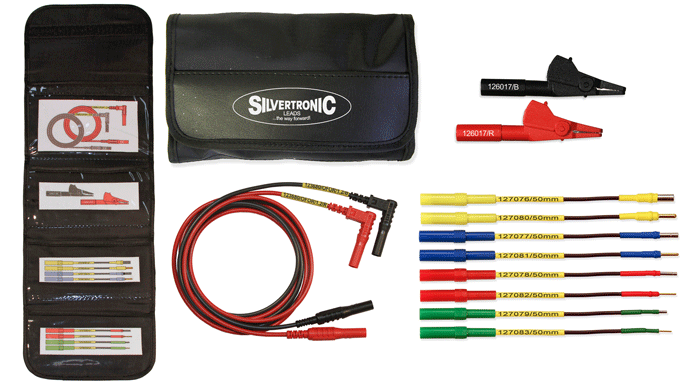

Avionic Connector Test Lead Service Kit

Avionic Connector Test Lead Service Kit Part No: 905312 (NSN 6625-01-618-9792)
Features: 123680/OF-OR Red and Black
CE/UL/CSA Compliant
1.2 Double Insulated Silicone Cable, 250+ copper stranding for high flexibility Silicone Insulation protects from excessive heat and cold
Inner Silicone skin is a contrasting colour which acts as a wear/damage indicator
Rated IEC 1010 1000V CAT III/600V CAT IV 20 Amps

4mm Socket to Connector Leads
127076/50mm Aero Lead Pin Size 12 - 4mm Socket to Female Yellow
127080/50mm Aero Lead Pin Size 12 - 4mm Socket to Male Yellow
127077/50mm Aero Lead Pin Size 16 - 4mm Socket to Female Blue
127081/50mm Aero Lead Pin Size 16 - 4mm Socket to Male Blue
127078/50mm Aero Lead Pin Size 20 - 4mm Socket to Female Red
127082/50mm Aero Lead Pin Size 20 - 4mm Socket to Male Red
127079/50mm Aero Lead Pin Size 22 - 4mm Socket to Female Green
127083/50mm Aero Lead Pin Size 22 - 4mm Socket to Male Green

126017 Red and Black
CE/UL/CSA Compliant
Accepts all standard 4mm plugs
Ideal for connecting to small conductors and test points
Jaw opening 7mm (.275”) Max
Rated IEC 1010 300V CAT II 10 Amps

119519
4 Pocket Silvertronic Storage Pouch
Incorporating pictorial Tool Control Facility for instant visual inspection

All components are NSN listed individually and can be configured as desired.
